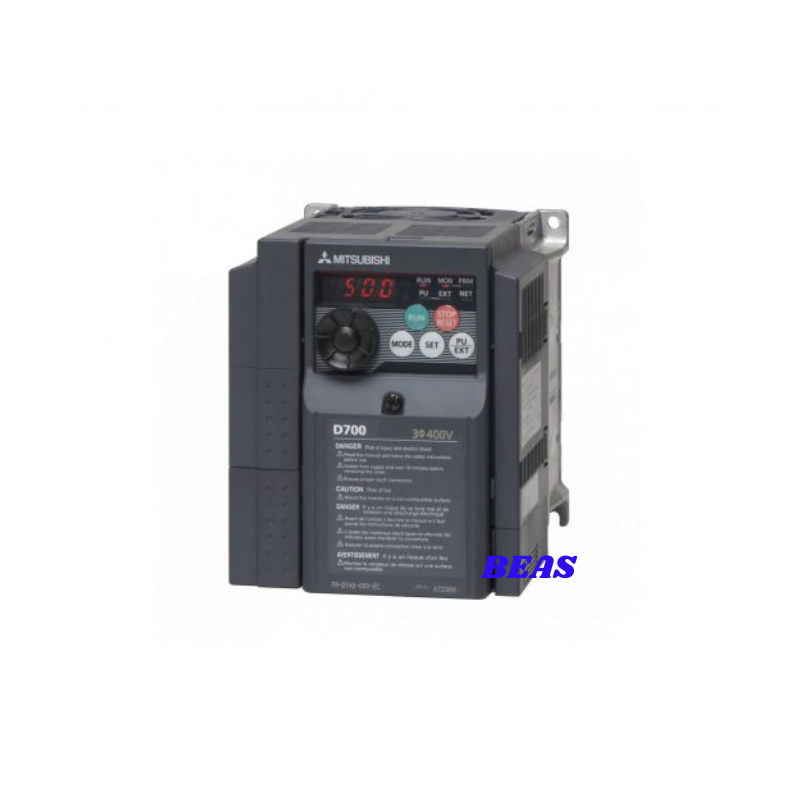

Specification: mitsubishi inverter frd740 1.5kw, mitsubishi inverter frd740 1.5kw
Brand: Mitsubishi
Product Model: FR-D740-1.5K
Type : Easy · Small inverters FREQROL-D 700 series Three-phase 400V
Applicable motor capacity (kW) : 1.5 kW
output:-
Rated capacity (kVA) : 2.7
Rated current (A) : 3.6
Overload current rating : 150% 60 s, 200% 0.5 s (at inverse time characteristic)
Voltage : 3 phase 380 to 480 V
Power supply:-
Voltage class : Three-phase 400V class
Rated input AC voltage · Frequency : 3 phase 380 to 480 V 50 Hz / 60 Hz
AC voltage allowable variation : 325 to 528 V 50 Hz / 60 Hz
Frequency tolerance variation : ± 5%
Power supply equipment capacity (kVA) : 4.5
Protective structure (JEM 1030) : Closed type (IP 20), fully closed structure series is IP 40.
